Wire mesh

About Wire mesh

Key Features

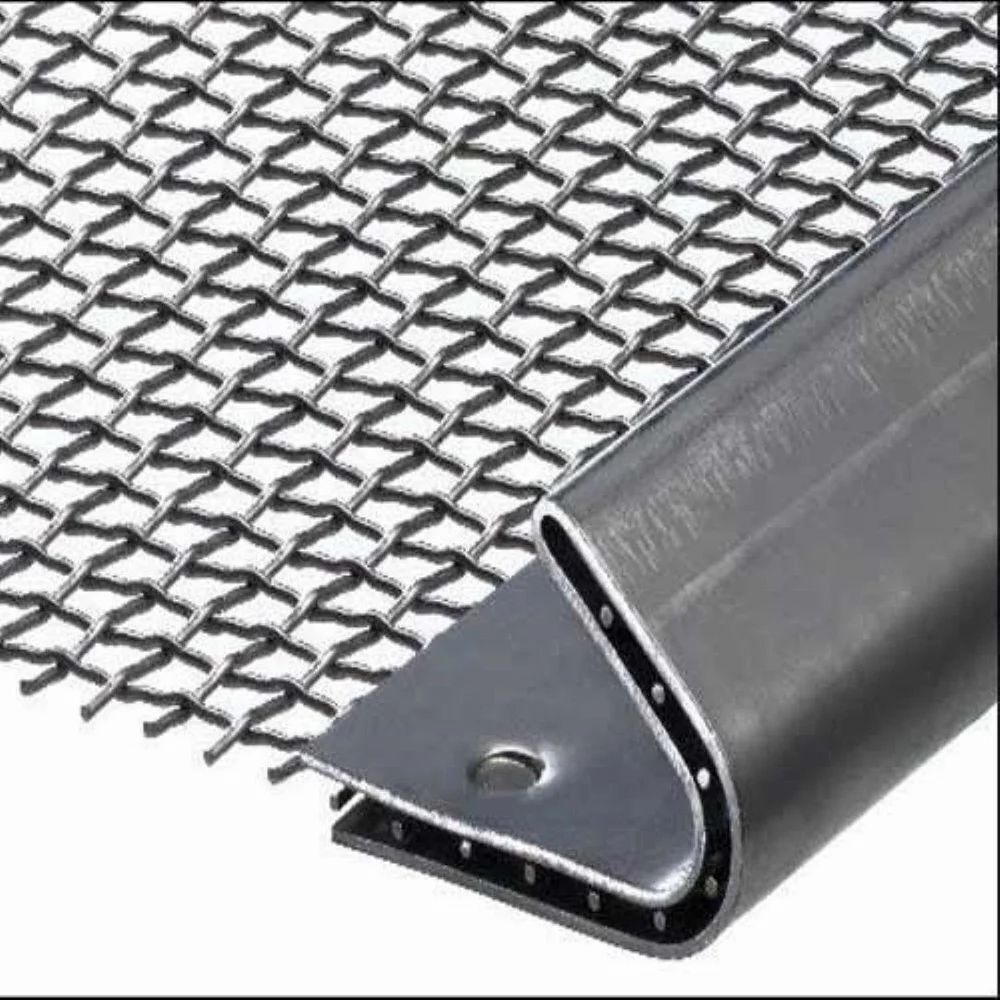

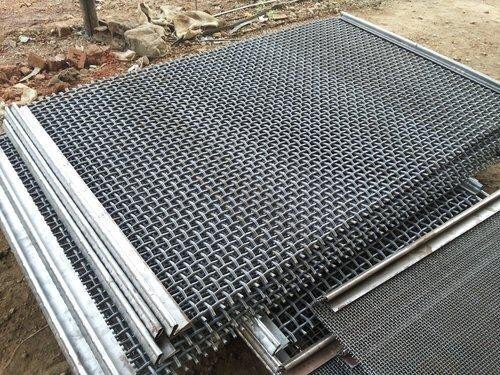

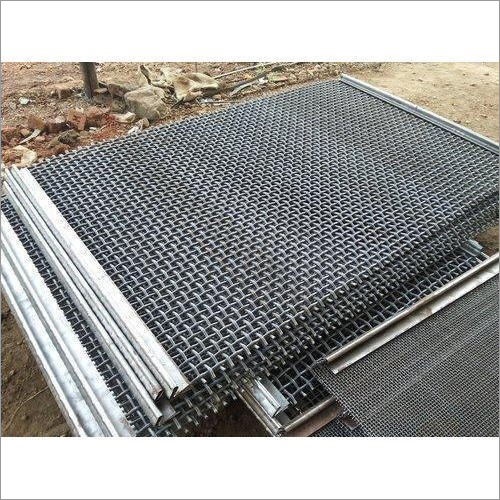

Stone Crusher Steel Wire Mesh specifications vary based on application and industry. Here's a detailed overview:

General Specifications- Material: High-carbon steel wire (e.g., SWG 8-12)
- Mesh Size: Typically 50mm x 50mm to 200mm x 200mm
- Wire Diameter: 3mm to 8mm
- Weave/Weld: Welded mesh for added strength
- Coating: Often galvanized or PVC-coated for corrosion resistance

Mesh Specifications- Mesh Size (mm): 50x50, 75x75, 100x100, 150x150, 200x200
- Wire Diameter (mm): 3, 4, 5, 6, 8
- Mesh Type: Square, rectangular, or diamond-shaped openings
- Mesh Pattern: Plain, zigzag, or cramped weave

Material Specifications- Material Grade: SWG 8-12, IS 280, ASTM A106
- Tensile Strength: 400-600 N/mm
- Yield Strength: 250-400 N/mm
- Elongation: 10-20%

Coating Specifications- Galvanization: ASTM A641, IS 4826, or equivalent standards
- Coating Thickness: 80-120 gsm (grams per square meter) or more
- Coating Type: GI (Galvanized Iron) or PVC-coated
